Cameras
Intelbras
VIP S3120 - Câmera IP |
- 1.3 Megapixel
- Lente de 3.6 mm
- 20m de alcance IR
- Instalação em ambientes internos
- Intelbras Easylink
- PoE
- Intelbras DDNS
- Compressão H.264
- Onvif
- Alimentação 12Vcc, PoE (IEEE802.3af)
- Obturador Automático/Manual, 1/4~1/10000s
- Dia/Noite Automático (Eletronic) / Colorido / P/B
- Resolução de 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
- Taxa de Frames 1.3M(1 ~ 15fps)/720P(1~25/30 fps)
- 0.1Lux/F1.2 (Color), 0.05Lux/F1.2(B/W);0Lux/F1.2(IR on)
|
VIP S4100 - Câmera IP |
- 1.3 Megapixel
- Lente de 2.8 mm
- Cúpula metálica
- Instalação em ambientes internos
- Intelbras Easylink
- PoE
- Intelbras DDNS
- Compressão H.264
- Onvif
- Alimentação 12Vcc, PoE (IEEE802.3af)
- Obturador Automático/Manual, 1/4~1/10000s
- Dia/Noite Automático (Eletronic) / Colorido / P/B
- Resolução de 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
- Taxa de Frames 1.3M(1 ~ 15fps)/720P(1~25/30 fps)
- Iluminação Mínima Color: 0. 1LUX/F1.2, B/W: 0,05LUX/F1.2
|
VIP S4120 - Câmera Dome IP |
- Resolução HD de 1.3 megapixels
- Iluminadores IR
- 20 metros de alcance IR
- Lente de 3,6 mm
- Fácil instalação
- Integração total com a plataforma Intelbras
- Homologada nos principais softwares do mercado
- Intelbras Easylink, DDNS, iSIC e tecnologia PoE
- Alimentação 12Vcc, PoE (IEEE802.3af)
- Obturador Automático/Manual, 1/4~1/10000s
- Dia/Noite Automático (Eletronic) / Colorido / P/B
- Resolução de 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
- Taxa de Frames 1.3M(1 ~ 15fps)/720P(1~25/30 fps)
- Iluminação Mínima Color: 0.1 Lux / F1.4, B/W: 0.005 Lux / F1.4,0 Lux (IR on)
|
VIP E3220 - Câmera bullet IP |
- Resolução Full HD
- WDR
- Intelbras DDNS
- Compressão de Vídeo H.264
- IP66
- PoE
- Onvif
- Alimentação 12Vcc, PoE (IEEE802.3af)
- Obturador Automático/Manual, 1/4~1/10000s
- Dia/Noite Automático (Eletronic) / Colorido / P/B
- Resolução de 1080P (1920×1080) / 720P (1280×720) / D1 (704×480) / CIF (352×240)
- Taxa de Frames 1080P / 720P (1 a 25/30fps)
- Iluminação Mínima Color: 0. 2 Lux/F1.2, B/W: 0.01 Lux/F1.2; 0 Lux/F1.2 (IR on)
|
VIP BX2M - Câmera Box de 2 Megapixels |
- 2.0 Megapixels de resolução em 1.920 x 1.080
- 1/3” Progressive CMOS Sensor
- Duplo Codec: H.264/MJPEG
- Sistema dual-stream
- Atualização remota
- True Day & Night – ICR
- Suporte a áudio bidirecional
- PoE: alimentação pelo cabo de rede
- Entrada para cartão SD/SDHC
- Alimentação 12Vcc, PoE (IEEE802.3af)
- Obturador NTSC : 1/7.5 a 1/8,000 (21 Passos) | PAL : 1/7.5 a 1/8,000 (21 Passos)
- Dia/Noite ICR (Tipo CDS)
- Resolução de Full HD(1920 x 1080), SXGA(1280 x 1024), 720P(1280x720), D1(720 x 480 / 720 x 576), VGA(640x480), CIF(352 x 240 / 352 x 288)
- Taxa de Frames Modo Dual : H.264 (30fps), MJPEG (30fps), Suporta Modo 720P
- Iluminação Mínima 1 Lux (Cor) / 0.1 (B/W) / 0,05 Lux (B/W, DSS Habilitado)
|
VIP DM2MIRVF - Câmera Dome de 2 Megapixels com IR e lente varifocal |
- 2.0 Megapixels de resolução em 1.920 x 1.080
- 1/3” Progressive CMOS Sensor
- Duplo Codec: H.264/MJPEG
- Sistema dual-stream
- Lente varifocal autoíris (f=3,0 a 10 mm)
- Atualização remota
- 15 m de alcance IR
- Suporte a áudio bidirecional
- PoE: alimentação pelo cabo de rede
- Obturador NTSC : 1/7.5 a 1/8,000 (21 Passos) | PAL : 1/7.5 a 1/8,000 (21 Passos)
- Dia/Noite ICR (Tipo AGC)
- Resolução de Full HD(1920 x 1080), SXGA(1280 x 1024), 720P(1280x720),D1(720 x 480 / 720 x 576), VGA(640x480), CIF(352 x 240 / 352 x 288)
- Taxa de Frames Modo Duplo : H.264 (30fps), MJPEG (30fps)
- Iluminação Mínima 1Lux (Col), 0.1Lux (B/W), 0.05Lux (B/W, DSS Habilitado), 0.00 Lux (IR LED Habilitado)
|
VIP SD1.3M 18X - Câmera Speed Dome de 1.3 Megapixel |
- 1.3 Megapixel de resolução em 1.280 x 960
- 1/3” 1.3M Progressive Scan CCD
- Compressão: H.264
- True Day & Night - ICR
- Zoom ótico de 18x
- Sistema dual-stream
- IPv6 e IPv4
- IP66
- Lente f=4,5 mm (wide) a 81 mm (tele), F1.6 a F2.7
- Zoom ótico 18X
- Velocidade do obturador 1/4 - 1/10.000 s
- Filtro Infravermelho Automático com substituição manual
- Modo Dia 0,1 lx (F1.6, 1/60 s)
- Modo Noite 0.07 lx (F1.6, 1/4 s)
- Alimentação 24 VAC, 60 Hz - 3A (+ - 10%)
- Compressão de Vídeo H.264/MJPEG
- Interface RJ-45 (100BASE-TX) em acordo com o padrão IEEE802.3.
|
VIP SD1.3MIR 18X - Câmera Speed Dome de 1.3Megapixel e LED IR |
- 1.3 Megapixels de resolução em 1.280 x 960
- 1/3” 1.3 M Progressive Scan CCD
- Compressão: H.264
- True Day & Night – ICR
- Alcance IR – 100 m
- Zoom ótico de 18x
- Sistema dual-stream
- IPv6 e IPv4
- Lente f=4,5 mm (wide) a 81 mm (tele), F1.6 a F2.7
- Zoom ótico 18X
- Velocidade do obturador 1/4 - 1/10.000 s
- Campo de visão 51,6° (zoom wide) até 3,1° (zoom tele)
- Equilíbrio do branco Auto/ATW/Indoor/Outdoor/Manual
- Modo Dia 0,1 lx (F1.6, 1/60 s)
- Modo Noite 0.01 lx (F1.6, 1/4 s)
- Alimentação 24 VAC, 60 Hz - 3A (+ - 10%)
- Proteção IP65 - ambientes internos e externos
- Mascara de Privacidade até 8, configuradas a cada 120°
- Compressão do vídeo H.264 / MJPEG
|
PELCO
|
IXS0 Series Sarix™ Network Camera
0.5 MEGAPIXEL STANDARD DEFINITION DIGITAL CAMERAS |
|
IX10 Series Sarix™ Network Camera
1.3 MEGAPIXEL HIGH DEFINITION DIGITAL CAMERAS |
|
IXE20 Series Sarix™ EP Network Camera
2.1 MEGAPIXEL EXTENDED PLATFORM HIGH DEFINITION DIGITAL CAMERAS |
|
IX30 Series Sarix™ Network Camera
3.1 MEGAPIXEL HIGH DEFINITION DIGITAL CAMERAS |
|
IMS0 Series Sarix™ Mini Indoor Fixed Dome
0.5 MEGAPIXEL STANDARD DEFINITION INTEGRATED CAMERA |
|
IM10 Series Sarix™ Mini Indoor
Fixed Dome
1.3 MEGAPIXEL HIGH DEFINITION INTEGRATED NETWORK CAMERA |
|
ID10 Series Sarix™ Network Indoor
Fixed Dome
1.3 MEGAPIXEL HIGH DEFINITION CAMERA |
|
IDE20 Series Sarix EP Network Indoor
Fixed Dome
2.1 Megapixel Extended Platform High Definition Camera |
|
Spectra® IV IP Series Network Dome Systems
DIGITAL PTZ HIGH-SPEED DOM |
|
ES30C/ES31C
Series Positioning System
High definition |

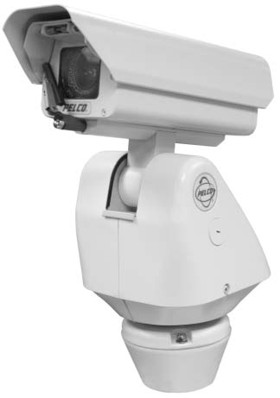

Esprit ES30PC/ES31PC
|
• Receptor, pan/tilt, e caixa de proteção com cartucho óptico integrado
pressurizado (IOC), NTSC/PAL
• Todos os componentes são montados na fábrica e testados no sistema
• Cartucho óptico integrado pressurizado e carregado na fábrica para 10 psig
• Sensores de estado sólido para temperatura, pressão e ponto
de condensação
• Sob exigências ambientais, display de status para temperatura,
pressão e ponto de condensação
• Modo de alerta de falha múltipla na tela
• Bússola na tela e display de tilt e zoom
• Inibição de zona programável na tela
• Menus programáveis na tela para ajustes de Pan/Tilt, câmera e alerta
de sensor
• Todas as características padronizadas do sistema de posicionamento Esprit
• Vigilância de intimidação
• Receptor/driver de multi-protocolo integral (Coaxitron®, RS-422 D e P)
• Controle de zoom digital e de posição e retorno através do protocolo D
• Caixa de proteção de câmera integrada
• Velocidade variável 0,1-250°/segundo
• 360° de rotação de panorâmica contínua
• Instalação rápida e fácil
• +33° a -83° de faixa de inclinação
• Atende às normas NEMA Tipo 4X e IP66 – Pan/Tilt e caixa de proteção
• Classificado IP67 – cartucho óptico integrado pressurizado (IOC)
• Velocidades de varredura variável (1-40°/segundo)
• Placas conversoras para protocolos selecionados de concorrentes
• Fácil de instalar – conexões elétricas rápidas e simples
• Selecionável 24 VCA ou 120/230 VCA
• Projetado para manutenção mínima, sem engrenagens para ajuste
• Garantia total de serviço contínuo
|
SAMSUNG
|
1.3 Megapixel HD Vandal-Resistant Network Dome Camera |
|
1.3 Megapixel HD Network Dome Camera
|
|
1.3 Megapixel HD Network Dome Camera |
|
1.3Megapixel HD Network Camera |
|
2 Megapixel Full HD H.264 Network Camera
• Will be released in 4Q, 2010
• WN2 DSP |
|
High Performance 1.3 Megapixel Network Camera |
|
37x H.264 Network PTZ Dome Camera
• Real-time 30(25)fps at high resolution (4CIF)
• H.264, MPEG-4, MJPEG multiple encoding |
|
37x High-Resolution Network PTZ Dome camera
• 30fps(NTSC) 37x Opical Zoom & Ultra-Low Light Levels of 0.7 Lux
|
|
|
|
|
AXIS
ACTI
|
ACM-1431/ACM-1432
- 1/3”Sony Super HAD CCD
- Day and night function with Mechanical IR Cut Filter
- Integrated f3.8 ~ 9.5 mm / F1.2 varifocal lens
- 0 Lux (IR LED ON)
- Selectable MPEG-4 SP / MJPEG compression
- CIF up to Full D1 resolution at 30/25 FPS
- Multi-stream with variable frame rate in the same compression
- Backlight Compensation, Auto Iris Control, Auto White Balance supported
- Two-way audio supported
- Hardware motion detection
- Hybrid analog and ethernet video output with 540 TV lines
- DC 12V or Power over Ethernet (IEEE 802.3af) supported(ACM-1431),or AC 24V power source
- IP66 weatherproof supported |
|
TCM-5001 - H.264 IP Box Camera
- 1/3” Micron Progressive Scan CMOS
- Bundled with f4.2mm / F1.8 fixed lens
- 0.5 Lux at F1.0
- Interchangeable Lenses Available
- H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
- VGA resolution at 30 FPS
- Wide Dynamic Range function supported
- Shutter Speed, White Balance, Exposure, Gain Controls supported
- Two-way audio supported
- Hardware motion detection, Digital Input / Output
- DC 12V or Power over Ethernet (IEEE 802.3af) supported |
|
TCM-3011 - H.264 IP Fixed Dome Camera with Varifocal Lens
- 1/3” Micron Progressive Scan CMOS
- Day and night function with Mechanical IR Cut Filter
- Integrated f3.3~12mm / F1.6 varifocal lens
- 0 Lux (IR LED ON)
- H.264 / MPEG-4 SP / MJPEG triple codec with two simultaneous streams
- VGA resolution at 30 FPS
- Wide Dynamic Range function supported
- Shutter Speed, White Balance, Exposure, Gain Controls supported
- Two-way audio supported
- Hardware motion detection, Digital Input / Output
- DC 12V or Power over Ethernet (IEEE 802.3af) supported
- Surface / Pendant / Wall / Corner / Pole / Flush mount supported |
|
CAM-6600 Series
- 1/4” EXview HAD / Progressive CCD
- Day and night function with Mechanical IR Cut Filter
- Optical Zoom Ratio 18x (CAM-6610) / 23x (CAM-6620) / 35x (CAM-6630)
- 0.01 Lux at F1.4 (CAM-6610/6630) 0.01 Lux at F1.6 (CAM-6620)
- MPEG-4 ASP compression
- CIF up to Full D1 resolution at 30/25 FPS
- Multi-stream with variable frame rate in the same compression
- Backlight Compensation, Auto Iris Control, Auto White Balance supported
- Hardware motion detection, Digital Input/Output
- Fail-over network protection and QoS enabled (L3) video streaming
- IP66 weatherproof supported
- Surface / Pendent / Wall / Corner / Pole mount supported |
|
|
|
|
|
